Dell-U3223QE UltraSharp 31.5" IPS USB-C 4K 顯示器

Dell Monitor: UltraSharp 32 USB-C 集線器4K 顯示器 - U3223QE

這款 31.5 吋Dell 顯示器的鮮明色彩和對比度奠基於 IPS Black 技術和作為連線中樞的集線器，讓您發揮最大生產力。

Dell 顯示器技術規格 - U3223QE

4K 顯示器概要

顯示類型

LED背光液晶顯示器 / TFT 主動矩陣

能量等級

級別 F

能源等級（HDR）

級別 E

對角線尺寸

31.5"

內置設備

USB 3.2 Gen 2/USB-C集線器

USB供電

90 瓦

面板類型

IPS Black 技術

長寬比

16:9

原始解析度

4K 3840 x 2160 在 60 Hz

畫素間距

0.18159 mm

每英寸畫素

137.68

亮度

400 cd/m²

對比度

2000:1 / 2000:1 (動態)

色彩支持

1.07 billion colors

色域

100% Rec 709, 100% sRGB, 98% DCI-P3

回應時間

8 ms（灰至灰正常）；5 ms（灰到灰快速）

水平視角

178°

垂直視角

178°

螢幕塗層

防眩, 3H硬質塗層

背光技術

LED 背光技術

特性

無汞, 無砷玻璃, Delta E <2校準, 3面無邊框

尺寸(WxDxH)

71.261 cm x 23.317 cm x 46.934 cm - 帶支架(最低位置)

重量

10.36 kg

連接效能

介面

HDMI (HDCP 2.2)

DisplayPort 1.4 (HDCP 2.2)

DisplayPort輸出

USB-C upstream/DisplayPort 1.4 Alt Mode with Power Delivery (power up to 90W, HDCP 2.2)

USB-C 3.2 Gen 2上游 (data only)

USB-C 3.2 Gen 2下游 (功率高達15W)

4 x USB 3.2 Gen 2下行

USB 3.2 Gen 2下游連USB充電1.2

音訊輸出 (迷你插孔)

LAN (RJ-45)

機械

顯示位置調整

高度調整, pivot (旋轉)調整, 旋轉調整, 傾斜調整

傾斜角度

-5/+21

旋轉角度

-30°to 30°

高度調節器

150 mm

VESA安裝接口

100 x 100 mm

其他

特性

安全鎖介面 (線纜鎖分售), 支持VESA介面

包含線纜

1 條電源纜線

1 條 DisplayPort 纜線 (DP 至 DP) – 1.8 公尺

1 個超高速 USB (Type-A 轉 Type-C)

1 條 Type-C (C-C 纜線) – 1 公尺

相容標準

RoHS, 無BFR, DisplayPort 1.4, HDCP 2.2, PVC-free

功率

輸入電壓

AC 100-240 V (50/60 Hz)

功耗(工作模式)

29.4 W

功耗SDR（開啟模式）

29.4 kWh/1000h

功耗HDR（開模式）

26.1 kWh/1000h

耗電量（最大值）

220 瓦

待機功耗

0.3 瓦

功耗（關閉模式）

0.2 瓦

開/關

是

尺寸和重量

尺寸和重量細節

帶支架(最低位置) - 寬度： 71.261 cm - 深度: 23.317 cm - 高度: 46.934 cm - 重量: 10.36 kg

不带支架 - 寬度： 71.261 cm - 深度: 5.578 cm - 高度: 41.004 cm

尺寸和重量(裝運)

裝運重量

14.49 kg

環境標準

EPEAT相容

EPEAT 金牌

能源之星認證

是

P.S.: 售後服務 (維修 或 保養資訊) 可於官網查閱，或於購買後向客服查詢。

保養期 : 3 年

備註 : 請保留HKTV Mall 收據及產品包裝盒，序號保養貼紙作保養用途。

Dell Monitor Tech Specs - U3223QE

4K Monitor General

Display Type

LED-backlit LCD monitor / TFT active matrix

Energy Class

Class F

Energy Class (HDR)

Class E

Diagonal Size

31.5"

Built-in Devices

USB 3.2 Gen 2/USB-C hub

USB Power Delivery

90 Watt

Panel Type

IPS Black Technology

Aspect Ratio

16:9

Native Resolution

4K 3840 x 2160 at 60 Hz

Pixel Pitch

0.18159 mm

Pixel Per Inch

137.68

Brightness

400 cd/m²

Contrast Ratio

2000:1 / 2000:1 (dynamic)

Colour Support

1.07 billion colours

Colour Gamut

100% Rec 709, 100% sRGB, 98% DCI-P3

Response Time

8 ms (grey-to-grey normal); 5 ms (grey-to-grey fast)

Horizontal Viewing Angle

178°

Vertical Viewing Angle

178°

Screen Coating

Anti-glare, 3H Hard Coating

Backlight Technology

LED backlight

Features

Mercury free, arsenic-free glass, Delta E<2 calibration, 3-sided bezeless

Dimensions (WxDxH)

71.261 cm x 23.317 cm x 46.934 cm - with stand (lowest position)

Weight

10.36 kg

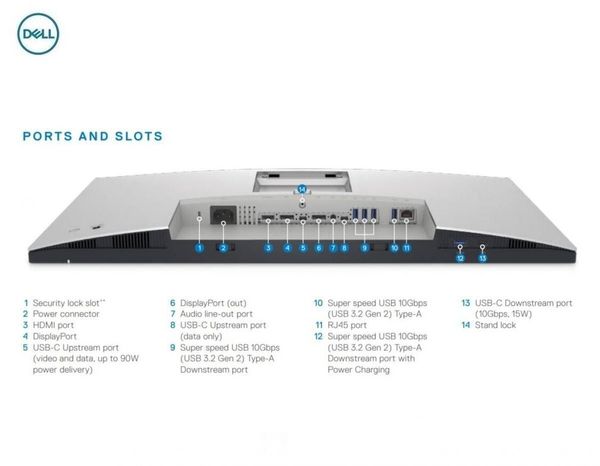

Connectivity

Interfaces

HDMI (HDCP 2.2)

DisplayPort 1.4 (HDCP 2.2)

DisplayPort output

USB-C upstream/DisplayPort 1.4 Alt Mode with Power Delivery (power up to 90W, HDCP 2.2)

USB-C 3.2 Gen 2 upstream (data only)

USB-C 3.2 Gen 2 downstream (power up to 15W)

4 x USB 3.2 Gen 2 downstream

USB 3.2 Gen 2 downstream with Battery Charging 1.2

Audio line-out (mini-jack)

LAN (RJ-45)

Mechanical

Display Position Adjustments

Height, pivot (rotation), swivel, tilt

Tilt Angle

-5/+21

Swivel Angle

-30°to 30°

Height Adjustment

150 mm

VESA Mounting Interface

100 x 100 mm

Miscellaneous

Features

Security lock slot (cable lock sold separately), VESA interface support

Cables Included

1 x Power cable

1 x DisplayPort cable (DP to DP) - 1.8 m

1 x Super speed USB (Type-A to Type-C)

1 x Type-C (C-C cable) - 1 m

Compliant Standards

RoHS, BFR-free, DisplayPort 1.4, HDCP 2.2, PVC-free

Power

Input Voltage

AC 100-240 V (50/60 Hz)

Power Consumption (On mode)

29.4 W

Power Consumption SDR (On mode)

29.4 kWh/1000h

Power Consumption HDR (On mode)

26.1 kWh/1000h

Power Consumption (Max)

220 Watt

Power Consumption Stand by

0.3 Watt

Power Consumption (Off Mode)

0.2 Watt

On / Off Switch

Yes

Dimensions & Weight

Dimensions & Weight Details

With stand (lowest position) - width: 71.261 cm - depth: 23.317 cm - height: 46.934 cm - weight: 10.36 kg

Without stand - width: 71.261 cm - depth: 5.578 cm - height: 41.004 cm

Dimensions & Weight (Shipping)

Shipping Weight

14.49 kg

Environmental Standards

EPEAT Compliant

EPEAT Gold

ENERGY STAR Certified

Yes

P.S.: After-sales service (maintenance or warranty information) please refer to the official website, or inquire with customer service after purchased.

Warranty Period : 3 Years

Remark : Please keep the HKTV Mall Invoice, packing box and serial number label for warranty.
