Philips 48V 磁吸式軌道燈｜家居與商業空間照明首選

Philips 48V 磁吸路軌燈系統

這是一套低壓（48V）磁吸式模組化照明系統，設計靈活、安裝簡便，適合現代家居、商業空間、展覽場地等多種用途。

 系統組件與結構

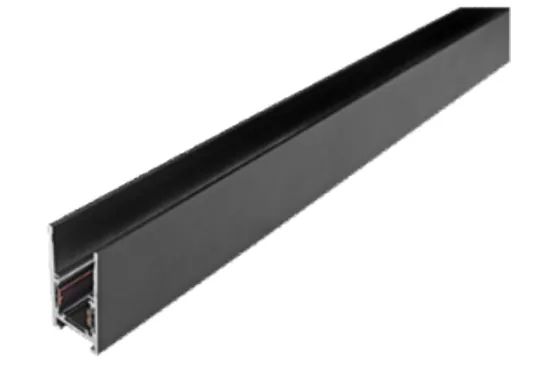

明裝／暗裝版本，長度 1米或2米，砂黑色鋁合金材質

電源火牛

150W 內置或外置版本，支援多燈具連接

連接件

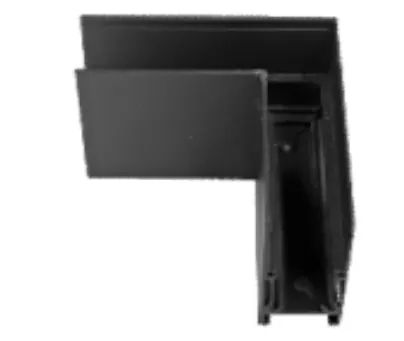

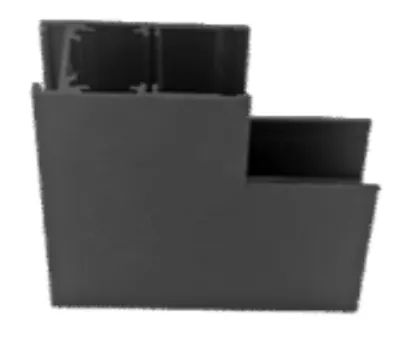

I型直駁、L型轉角、垂直／水平轉角，支援明裝與暗裝

燈具模組

線性泛光燈、射燈、可調角射燈等，磁吸安裝，可自由移動與更換

💡 燈具種類與技術規格

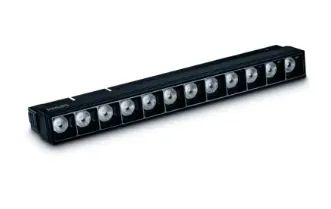

🔹 線性射燈模組（12.5W）

• 色溫：3000K / 4000K
• 光通量：1100 / 1130 lm
• 光束角：24°
• 顯色指數：≥90
• 系統效率：88 / 90 lm/W
• 尺寸：343 x 22 x 100 mm
• 功率因數：0.9
• 眩光指數：UGR < 7

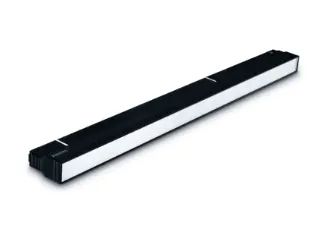

🔹 泛光燈模組（7W / 12.5W）

• 色溫：3000K / 4000K
• 適合營造柔和背景光源

🔹 射燈模組（6.5W / 9.5W）

• 聚焦照明，適合展示品或局部照明

🛠️ 安裝方式

• 磁吸設計：燈具可直接吸附於路軌上，無需工具
• 模組化連接件：可自由拼接成直線、L型、U型或環形結構
• 明裝／暗裝選擇：根據天花板結構選擇安裝方式

🏠 應用場景

• 住宅空間：客廳、書房、走廊
• 商業空間：精品店、畫廊、展覽廳
• 辦公空間：會議室、接待區

💡 PHILIPS 飛利浦磁吸軌道系列

創造無限設計的可能性，點亮空間美學新境界

PHILIPS 磁吸軌道系列是專為現代空間設計而打造的高效照明系統，結合極簡美學與靈活配置，讓光線成為空間設計的一部分。無論是住宅、商業空間或高端工程項目，皆可依需求自由搭配，實現個性化照明方案。

🌟 產品特色：

• 磁吸式安裝：模組化設計，燈具可自由移動、替換，施工與維護更簡便。
• 多元燈型選擇：嵌入式、吊掛式、聚光燈等多種燈具，滿足不同照明需求。
• 極簡線條設計：融入現代建築美學，提升空間質感。
• 高效節能光源：採用 PHILIPS 品牌 LED 技術，光效穩定，節能耐用。
• 適用多種場景：客廳、辦公室、展覽空間、商業場域皆可靈活應用。

📌 工程專案供應說明：

此系列產品為工程專案供應項目，需由承辦商聯絡我們另行報價。我們提供專業技術支援與客製化配置建議，協助您打造理想照明環境。

🔌 Philips 48V Magnetic Track Lighting System

This is a low-voltage (48V) modular magnetic lighting system designed for flexibility and easy installation. It’s ideal for modern homes, commercial spaces, and exhibition venues.

🧩 System Components & Structure

• Surface-mounted / recessed versions available in 1-meter or 2-meter lengths
• Material: Sandblasted black aluminum alloy
• Power Supply Unit:
• 150W built-in or external versions
• Supports multiple lighting modules
• Connectors:
• I-shaped straight connector
• L-shaped corner connector
• Vertical / horizontal corner connectors
• Compatible with both surface and recessed installations
• Lighting Modules:
• Linear floodlights, spotlights, adjustable-angle spotlights
• Magnetic mounting for easy repositioning and replacement

💡 Lighting Types & Technical Specifications

🔹 Linear Spotlight Module (12.5W)

• Color temperature: 3000K / 4000K
• Luminous flux: 1100 / 1130 lm
• Beam angle: 24°
• Color rendering index (CRI): ≥90
• System efficiency: 88 / 90 lm/W
• Dimensions: 343 x 22 x 100 mm
• Power factor: 0.9
• Unified Glare Rating (UGR): < 7

🔹 Floodlight Module (7W / 12.5W)

• Color temperature: 3000K / 4000K
• Ideal for creating soft ambient lighting

🔹 Spotlight Module (6.5W / 9.5W)

• Focused lighting, perfect for highlighting displays or accent lighting

🛠️ Installation Methods

• Magnetic Mounting: Fixtures attach directly to the track without tools
• Modular Connectors: Easily assembled into straight lines, L-shapes, U-shapes, or circular layouts
• Surface / Recessed Options: Choose based on ceiling structure

🏠 Application Scenarios

• Residential: Living rooms, studies, hallways
• Commercial: Boutiques, galleries, exhibition halls
• Office: Meeting rooms, reception areas

💡 PHILIPS Magnetic Track Series

Unlock limitless design possibilities and illuminate the aesthetics of your space.

The PHILIPS Magnetic Track Series is a high-efficiency lighting system crafted for modern environments. It blends minimalist design with flexible configuration, making light an integral part of spatial design. Whether for homes, commercial venues, or premium architectural projects, it offers customizable lighting solutions tailored to your needs.

🌟 Product Highlights

• Magnetic Installation: Modular design allows fixtures to be freely moved and replaced, simplifying construction and maintenance
• Diverse Lighting Options: Recessed, pendant, and spotlight modules to meet various lighting needs
• Minimalist Design: Clean lines that complement modern architecture and elevate spatial aesthetics
• Energy-Efficient LED Technology: Powered by PHILIPS LED solutions for stable performance and long-term durability
• Versatile Applications: Suitable for living rooms, offices, exhibitions, and commercial environments

📌 Project Supply Information

This product series is available for project-based supply only. Contractors must contact us for a customized quotation. We provide professional technical support and tailored configuration advice to help you create the ideal lighting environment.
