天怡燈飾｜Fumagalli ABRAM Up&Down Bulkhead｜陽台/走廊壁燈推薦

Fumagalli ABRAM 上下照式壁灯（ABRAM Up&Down Bulkhead）

一、產品基本介紹（Product Basic Introduction）

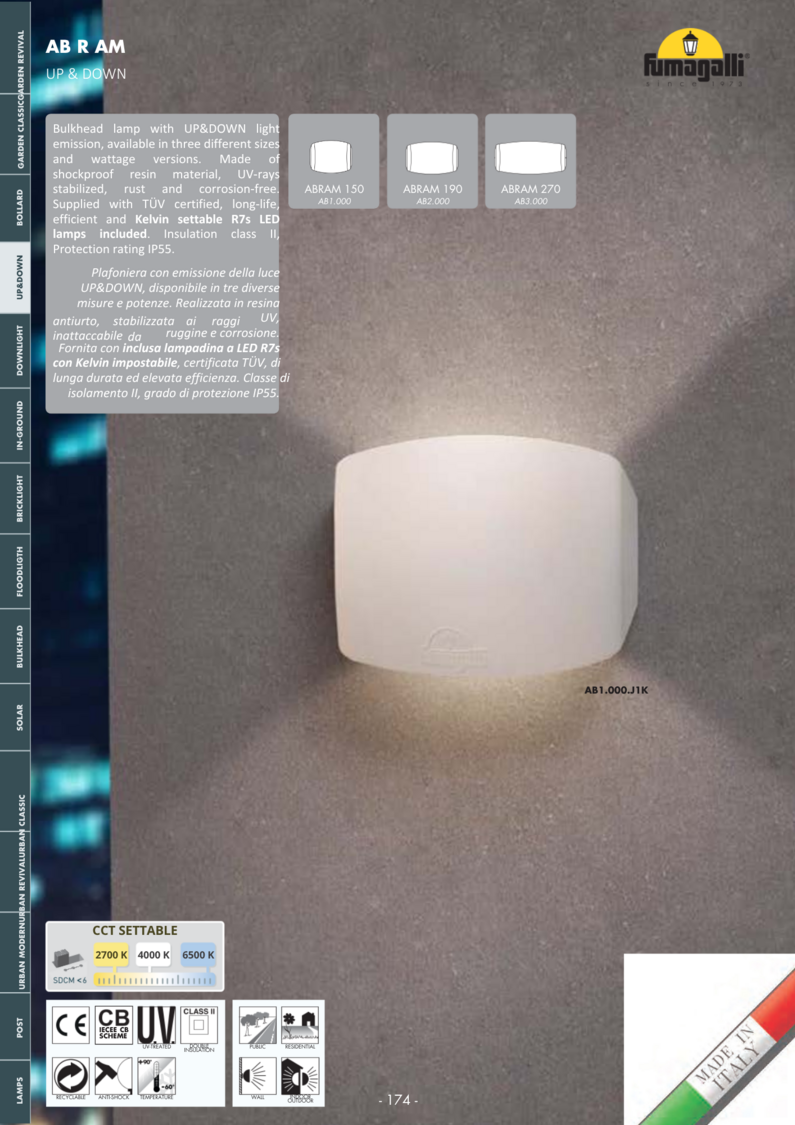

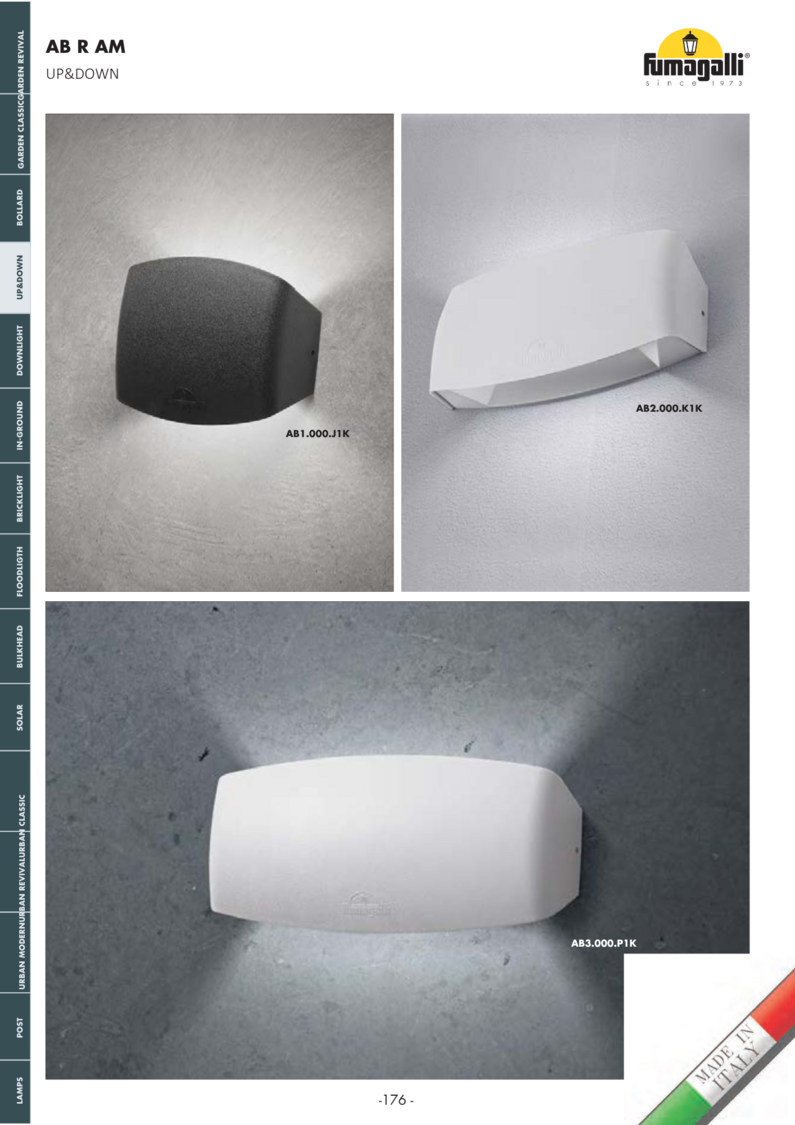

Fumagalli ABRAM 系列為上下照式壁灯（Up&Down Bulkhead），隸屬於花園經典（GARDEN CLASSIC）風格，提供多種尺寸型號（ABRAM 150、190、270，對應型號 AB2.000、AB3.000）。產品支援色溫可調（CCT SETTABLE），內含 TÜV 認證的長壽高效 R7s LED 燈泡，具備雙重絕緣（DOUBLE INSULATION）設計，防護等級達 IP55，適用於室內外環境（INDOOR & OUTDOOR），且標註「義大利製造（MADE IN ITALY）」，確保工藝與品質。燈泡更換便捷，安裝後維護簡單，同時符合多項歐盟標準與國際認證，適用於花園、城市公共區域等多場景照明。

The Fumagalli ABRAM series is an Up&Down Bulkhead, belonging to the GARDEN CLASSIC style, available in multiple size models (ABRAM 150, 190, 270, corresponding to model numbers AB2.000, AB3.000). The product supports CCT (Color Temperature) setting, includes a TÜV-certified, long-life and high-efficiency R7s LED bulb, features double insulation design, and has a protection rating of IP55, suitable for both indoor and outdoor environments (INDOOR & OUTDOOR). Marked "MADE IN ITALY", it ensures craftsmanship and quality. The bulb replacement is quick and easy, with simple maintenance after installation. It also complies with multiple EU standards and international certifications, suitable for lighting in gardens, urban public areas and other scenarios.

二、產品規格與技術參數（Product Specifications & Technical Parameters）

1. 光源參數（Light Source Parameters）

| 燈泡類型（Bulb Type） | 型號規格（Model Spec） | 功率（Power） | 最大亮度（Luminous Flux Up To） | 色溫（Colour Temp.） | 附加後綴（*Add. Suffix） |

|----------------------|-----------------------|---------------|--------------------------------|---------------------|--------------------------|

| R7s LED | Ø22, 118/189/78mm | 3.5W | 365lm | 2700K/4000K/6500K | .J1K |

| R7s LED | Ø22, 118/189/78mm | 7.5W | 790lm | 2700K/4000K/6500K | .K1K |

| R7s LED | Ø22, 118/189/78mm | 10.5W | 1160lm | 2700K/4000K/6500K | .P1K |

2. 防護與認證（Protection & Certifications）

- 防護等級：IP55（防塵、防噴水，透過矽膠墊圈增強對外界環境的防護，適用戶外）

- 絕緣等級：雙重絕緣（DOUBLE INSULATION，提升用電安全性）

- 認證標準：CE、TUV、CB、LVD、EMC、ERP，符合 EU2019/2015 與 EU2019/2020 歐盟標準

- 色溫一致性：SDCM<6（色溫偏差小，光色穩定）

English

- Protection Rating: IP55 (Dust-proof, water-jet proof, enhanced protection against external environments via silicone rubber gaskets, suitable for outdoor use)

- Insulation Class: Double Insulation (improves electrical safety)

- Certification Standards: CE, TUV, CB, LVD, EMC, ERP, compliant with EU standards EU2019/2015 and EU2019/2020

- Color Temperature Consistency: SDCM<6 (small color temperature deviation, stable light color)

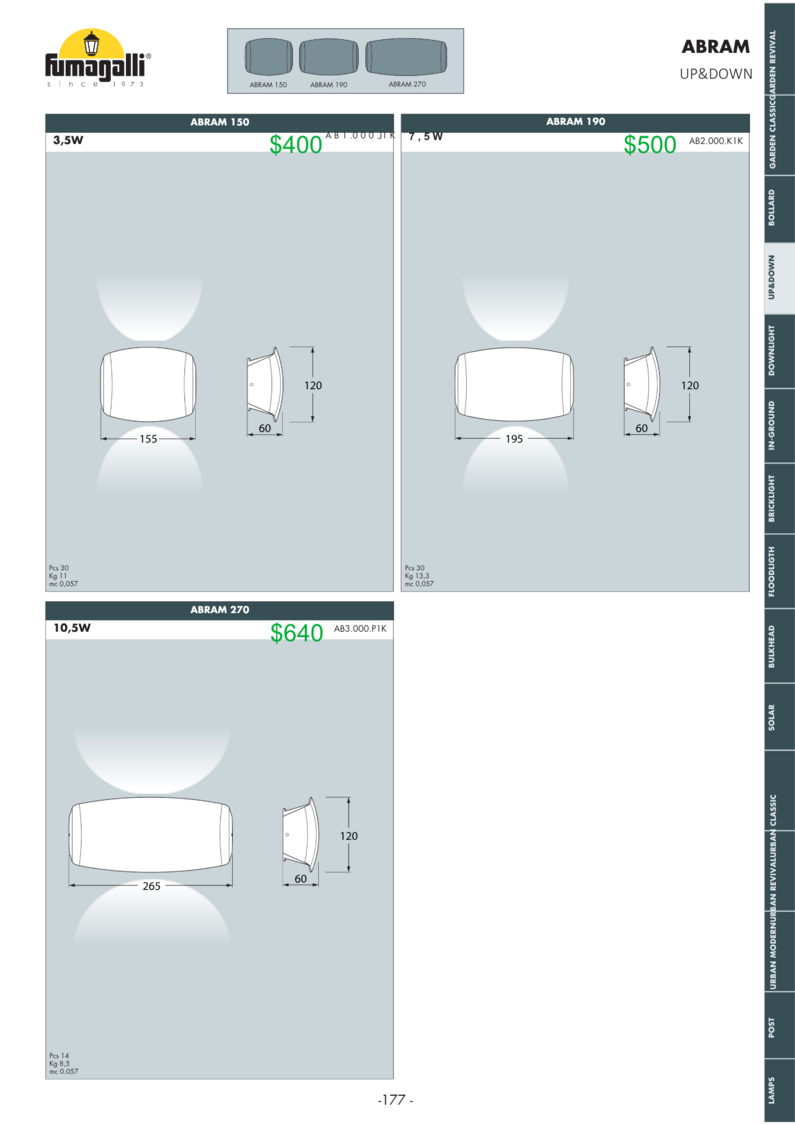

### 3. 尺寸與重量（Dimensions & Weight）

| 產品型號（Product Model） | 寬度（Width） | 高度（Height） | 深度（Depth） | 重量（Weight） |

|--------------------------|---------------|---------------|---------------|---------------|

| ABRAM 150 | 155mm | 120mm | 60mm | 0.36Kg |

| ABRAM 190 | 195mm | 120mm | 60mm | 0.44Kg |

| ABRAM 270 | 265mm | 120mm | 60mm | 0.60Kg |

4. 電氣參數（Electrical Parameters）

繁體中文

- 電壓範圍：100-240V（寬電壓設計，適用多國電網）

- 燈座類型：R7s 標準燈座（R7s standard lamp holder，便於更換燈泡）

- 驅動器：內置驅動器（BUILT-IN DRIVER，簡化安裝與接線）

English

- Voltage Range: 100-240V (wide voltage design, suitable for power grids in multiple countries)

- Lamp Holder Type: R7s standard lamp holder (easy for bulb replacement)

- Driver: Built-in Driver (simplifies installation and wiring)

5. 環境適應性（Environmental Adaptability）

- 適用場景：室內外通用（INDOOR & OUTDOOR），可用于花園（GARDEN）、城市經典（URBAN CLASSIC）、城市復古（URBAN REVIVAL）等風格場地

- 防護設計：透過矽膠膏（silicone paste）防熱防潮，抵禦惡劣戶外環境

- 光源壽命：長壽命 LED 光源（long-life LED light sources），降低更換頻率

- Applicable Scenarios: Suitable for both indoor and outdoor use (INDOOR & OUTDOOR), applicable to venues with styles such as GARDEN, URBAN CLASSIC, URBAN REVIVAL

- Protection Design: Heat and humidity resistant via silicone paste, resisting harsh outdoor environments

- Light Source Lifespan: Long-life LED light sources (reduces replacement frequency)

三、顏色與材質選項（Color & Material Options）

1. 材質細節（Material Details）

| 部件名稱（Component Name） | 繁體中文材質描述（Traditional Chinese Material Description） | English Material Description |

|--------------------------|----------------------------------------------------------|-----------------------------|

| 外罩（Cover） | 防衝擊樹脂，抗紫外線穩定處理（UV-rays stabilized），防鏽防腐蝕；專為上下雙向出光設計 | Shockproof resin, UV-rays stabilized, rust and corrosion-free; designed for up&down bidirectional light emission |

| 透明模組（Clear Module） | 防衝擊樹脂，抗紫外線穩定處理；包含外罩與底座，用於固定電氣元件；配矽膠墊圈增強防護，含 R7s LED 燈泡 | Shockproof resin, UV-rays stabilized; includes cover and base for fixing electrical components; equipped with silicone rubber gasket for enhanced protection, includes R7s LED bulb |

| 牆基（Wall Base） | 防衝擊樹脂，抗紫外線穩定處理，防鏽防腐蝕；用於安裝固定 LED 模組 | Shockproof resin, UV-rays stabilized, rust and corrosion-free; used for installing and fixing the LED module |

2. 顏色選擇（Color Options）

- 成型顏色（Moulded colours）：黑色（Black）、白色（White）、灰色（Grey）

- 擴散罩顏色（Diffuser PC）：透明（Clear）

- Moulded Colours: Black, White, Grey

- Diffuser PC Colour: Clear

四、產品核心優勢（Core Product Advantages）

1. 節省成本（COST SAVING）：高效 LED 光源降低能耗，長壽命特性減少更換與維護成本

2. 靈活性高（GREAT FLEXIBILITY）：多尺寸、多色溫可選，适配不同空間與氛圍需求；燈泡更換便捷，維護簡單

3. 未來適配性（FUTURE-PROOFED LUMINARIES）：支援升級至最新照明技術，避免設備快速淘汰

4. 戶外適用性（SUITABLE FOR OUTDOOR USE）：IP55 防護+矽膠防熱防潮，抵禦戶外環境影響

5. 出光設計：上下雙向出光（up&down light emission），無照明死角，提升空間照明均勻度

1. Cost Saving: High-efficiency LED light sources reduce energy consumption; long-life feature reduces replacement and maintenance costs

2. Great Flexibility: Multiple sizes and color temperatures available, adapting to different space and ambiance needs; quick and easy bulb replacement for simple maintenance

3. Future-Proofed Luminaries: Supports upgrading to the latest lighting technologies, avoiding rapid equipment obsolescence

4. Suitable for Outdoor Use: IP55 protection + silicone heat and humidity resistance, resisting the impact of outdoor environments

5. Light Emission Design: Up&down bidirectional light emission (no lighting dead ends, improves spatial lighting uniformity)
